Asus P5KPL-AM Motherboard

Standaard levertijd

: verzending binnen 24 uur

€ 45,00

Prijs per stuk

Voorraad : 1

Aantal:

Bestellen

Omschrijving

Asus P5KPL-AM

Motherboard

CPU
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® D/Pentium® 4/Celeron® E1000 Series and Celeron 400 Series Intel® Hyper-Threading Technology ready

Chipset
Intel® G31 Intel ICH7

Front Side Bus
1600/1333/1066/800 MHz (1600 is overclock speed)

Memory
2 x DIMM, Max. 4 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Overclock speed
Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI

VGA
Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)
Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:85Hz

Storage
Southbridge
1 xUltraDMA 100/66/33
4 xSATA 3 Gb/s ports

LAN
Realtek RTL8102EL 100/10 LAN

Audio
VIA VT1708B 8 -Channel High-Definition Audio CODEC
Anti-Pop Function
Jack-detect & Multi-Streaming
Support S/PDIF Out connector

USB
8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
8 -Channel Audio I/O

Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x internal speaker connector
1 x S/PDIF Out connector
1 x CPU/ Chassis/ Power Fan connector
1 x Front panel High Definition audio connector
1 x Chassis Intrusion connector
1 x CD audio in connector
24-pin EPS 12V Power connector
4-pin ATX 12V Power connector
1 x System Panel connector

Categorieën

Menu

Asus P5KPL-AM

Motherboard

CPU
Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® D/Pentium® 4/Celeron® E1000 Series and Celeron 400 Series Intel® Hyper-Threading Technology ready

Chipset
Intel® G31 Intel ICH7

Front Side Bus
1600/1333/1066/800 MHz (1600 is overclock speed)

Expansion Slots
1 x PCIe x16
1 x PCIe x1
2 x PCI

VGA
Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)
Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:85Hz

Storage
Southbridge
1 xUltraDMA 100/66/33
4 xSATA 3 Gb/s ports

LAN
Realtek RTL8102EL 100/10 LAN

Audio
VIA VT1708B 8 -Channel High-Definition Audio CODEC
Anti-Pop Function
Jack-detect & Multi-Streaming
Support S/PDIF Out connector

USB
8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

Back Panel I/O Ports
1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
8 -Channel Audio I/O

BIOS
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.5
ACPI 2.0

Manageability
WOL,PXE,RPL,WOR ,PME Wake Up

uATX Form Factor
9.6 inch x8 inch ( 24.4 cm x 20.3 cm )

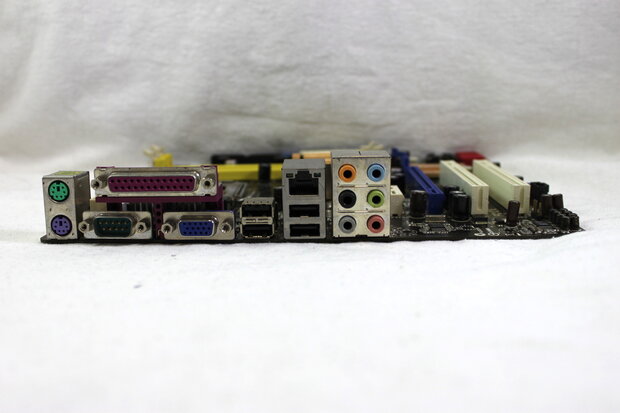

Dit is een actuele foto van het product
This is a current photo of the product

Dit is een tweedehands onderdeel
This is a used part
